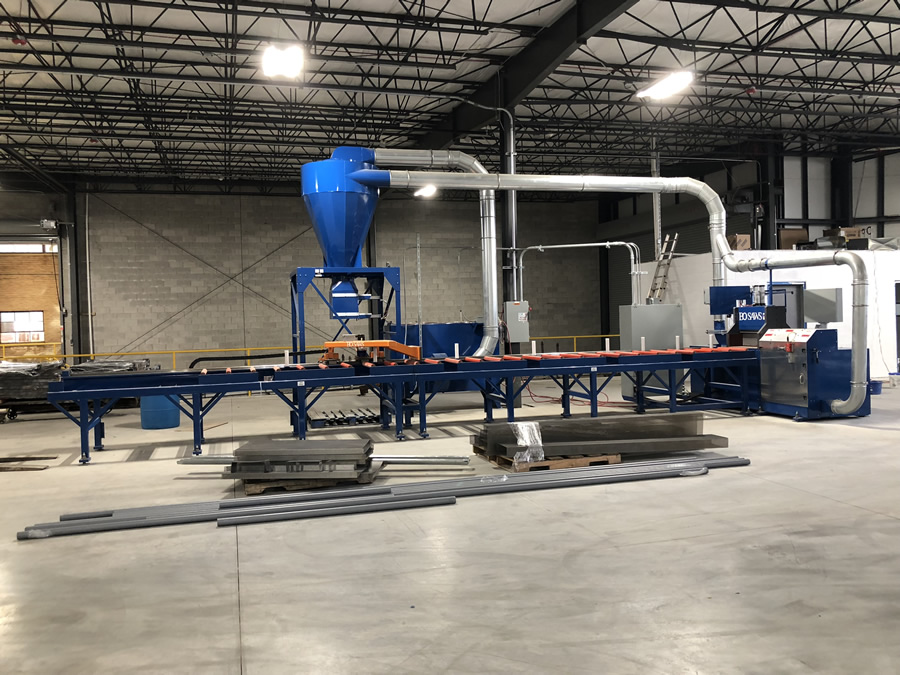

Precision Cutback Saw System designed for production cutting of bars or extrusions to close tolerances. The system uses a computer controlled back–gauge for accurate sawing performance and improved throughput.

Saw Clamping

The saw automatically clamps the material at the pressures entered at the touch screen. Feedback provided by the cylinders allows the controller to calculate the start and end of cut positions. This feature protects against the possibility of operator error.

Gauge System

The gauge system uses a servo drive to position the gauge head through a rack and pinion drive.

Scrap Length The gauge clamp is designed to allow the gauge face to be within 5” of the saw line. There will a 1” drop off for the initial square cut for 6” of total scrap.
Fast Indexing Speeds The gauge can be programmed to index and return at variable speeds to allow faster cycle times and increased throughput.

Memory Module

Saw settings for a particular part, along with cut length, cut width, quantity, etc., can be saved in memory for future use, saving set-up time.

Cut Height: 8”
Maximum Width: 24”
Minimum length: .5”
Maximum Length: 24’
Saw Carriage Speed: up to 500 IPM
Gauge Speed: Up to 1000 IPM
Straightness of Cut:+/-.005” over full range
Parallelism: +/-.003/ft
Horizontal Squareness: +/-.002 in/ft corner to corner
Vertical Squareness: +/-.001in/in of thickness
