Custom Powder Coating of Large Formed and Welded Steel Tanks
for an Industrial Parts Washing System

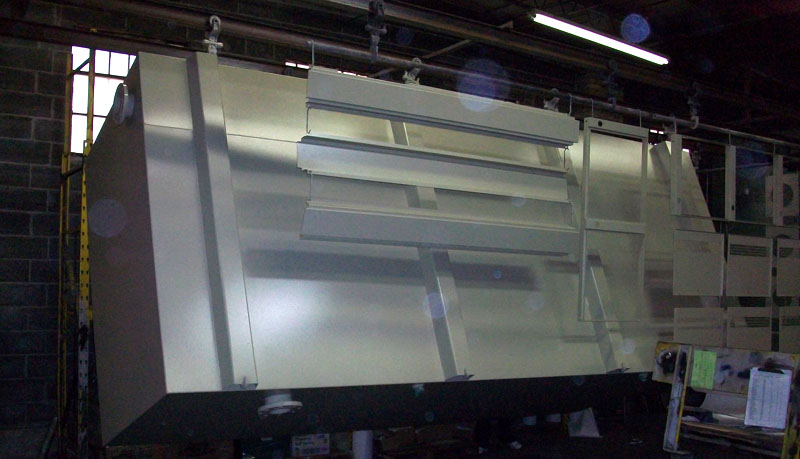

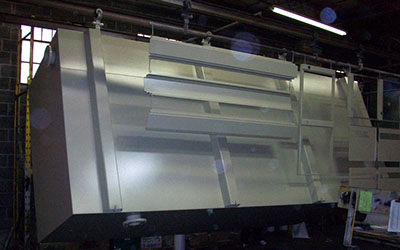

Custom Powder Coating of Large Formed and Welded Steel Tanks

Click to Enlarge

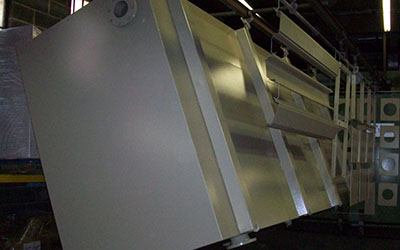

Custom Powder Coating Welded Steel Tanks

Click to Enlarge

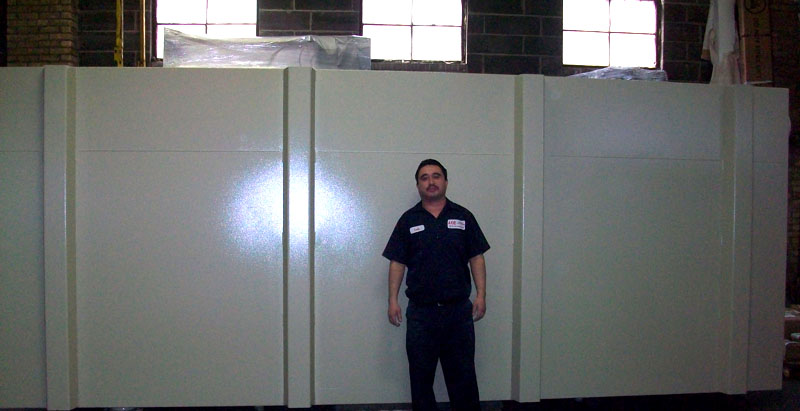

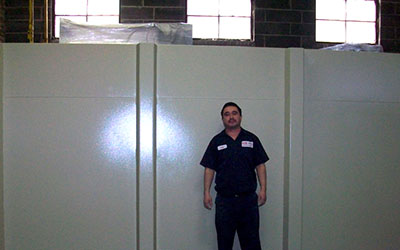

Custom Powder Coating of Large Scale Steel Tanks

Click to Enlarge

Powder coating has long been known for its ability to make coated parts impervious to the elements while offering durability under extreme wear conditions. At Ace Anodizing we understand that the durability of the coating is only as good as the application method. That’s why this fabricator came to us with this large scale powder coating project. The components, which were fabricated from heavy gauge steel, were to spend their service life as integral tanks in a heavy duty parts washing system.

The customer had specific requirements for the coating, such as the application of a zinc phosphate pre-treatment and a fluro-polymer custom color, all of which were necessary to guarantee the coatings performance and meet the design requirements. They also had specific requirements for packaging to protect the parts through shipping and rigging prior to the system  installation.  Our ability to powder coat and oven cure large, heavy parts allowed us to powder coat each of the eight  five hundred pound,  14’ L x 4’W x 8’H tanks and related components in five days.

For more information on this project, or to learn how Ace Anodizing can service your powder coating needs, see the table below or contact us directly.

Request a Quote/Information

Highlights of this Custom Powder Coating Project

Product Description These large, heavy guage formed and welded steel takes are components in an industrial parts washing system
Custom Powder Coating Capabilities Applied/Processes Primary:
Powder Coating
Thermal Curing
Secondary:
Prime
  • Apply zinc phosphate pre-treatment
Thermal Curing
Packaging
  • Custom Packaging w/ Protective Barriers on Wooden Skids and Crating
Overall Part Dimensions 14' Long by 4' Wide by 8' High
Material Coated Heavy Guage Steel
Finish Architectural Fluro-Polymer Custom Color
Resistances Industrial Application Exposed to High Temperature, High Pressure industrial environmental conditions
  • High Heat
  • High Pressure
  • Humidity
  • Chemical Resistance
  • Mechanical Part to Part Contact
Features Due to Our Large Part Capabilities (Up to 24' Long/ 1500 Pounds), our Client Was Able to Fabricate Tank Complete Prior to Pretreatment and Final Coating. Quick turns allowed them to meet project deadlines.
  • Improved Clients Efficiency
  • Improves Clients Lead Time
Industry for Use Construction
Industrial/ Commercial
In process testing/inspection performed Visual Inspection
Adhesion Testing
Volume Eight 448 cubic foot tanks weighing 500 pounds each
Delivery/Turnaround Time 5 Days
Delivery Location Illinois
Standards Met ISO 9001:2008 Certified
AAMA 2603, 2604, 2605
Customer Supplied Print and Coating Specifications
Product Name Tanks/ Industrial Cabinets
Weldments
Fabricated Metal
