Two Step Anodizing of Aluminum Components for the Architectural Industry

Anodizing of Aluminum Components

Click to Enlarge

Anodizing of Aluminum Components

Click to Enlarge

Anodizing of Aluminum Components

Click to Enlarge

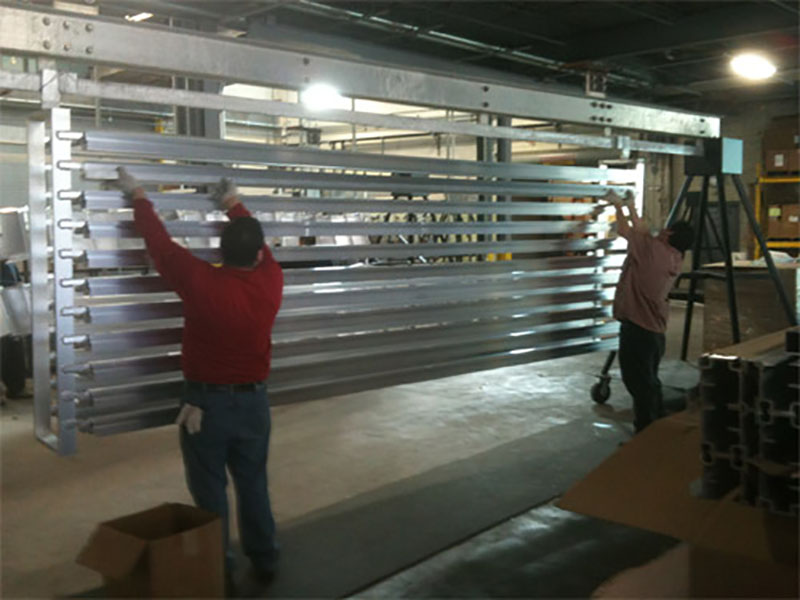

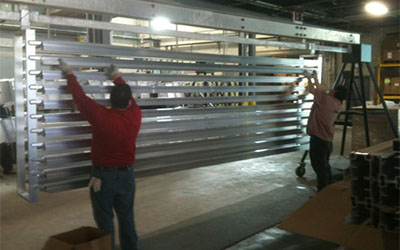

An architectural company approached Ace Anodizing for the anodizing of a revolving door assembly for a custom construction project. The components composed of extruded 6063-T6 aluminum, measured up to 288” in length and 5’ in diameter, and required a bronze finish. Special requirements called for no rack marks or run off, meaning that all parts must have a uniform unobstructed finish.

We decided on a two-step electrolytic anodizing process with integral coloring and an architectural seal to protect the finish, and provide lightfast characteristics in heavy traffic areas. The 2,000 finished pieces where fully sealed and packaged to the customers specifications and shipped within five day of order acceptance.

To learn more about this project or what Ace Anodizing can do for you, see the table below or contact us directly.

Request a Quote/Information

Highlights of this Custom Anodized Aluminum Project

Product Description Two steps anodizing on fabricated aluminum components
Custom Anodizing Capabilities Applied/Processes Primary:
Two Step Architectural Anodizing
  • Anodizing w/ Electrolytic/Integral Coloring and Architectural Seal
Secondary:
Packaging
  • Cover Complete
  • Heavy Paper
  • Interleaf Paper Between Rows
  • No Chipboard or Cardboard to Metal Contact
Overall Part Dimensions Material Thickness: 1.375"
Length: 288" +.125"/.000"
Width: 12.00"
Diameter: Up to 5'
Tightest Tolerances No Run-Off for Trimming
Rack Marks are not Allowed on Visible Surfaces
Material Anodized 6063-T6 Aluminum

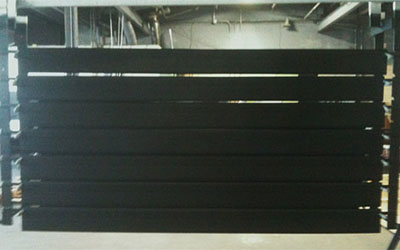

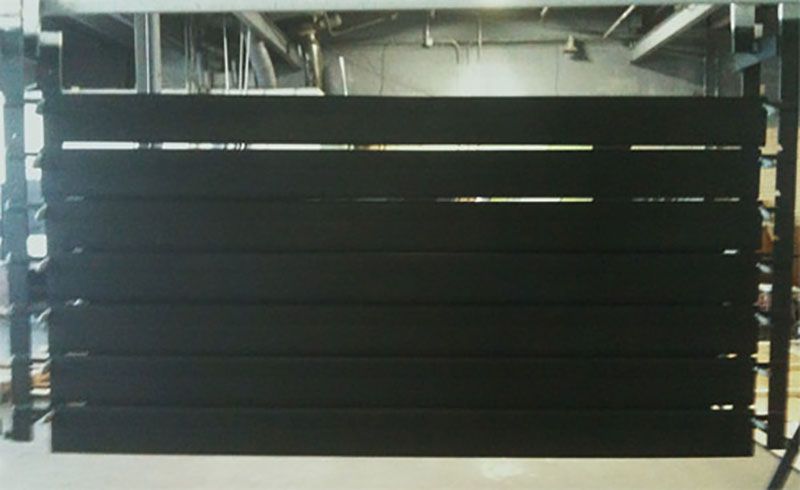

Finish Anodized: Bronze
Resistances Lightfast Characteristics in Heavy Traffic Area
Industry for Use Architectural
  • Revolving Doors
  • Building Store Front & Entrances
Volume 2,000 Units
Delivery/Turnaround Time 5 Days
Delivery Location Michigan
Standards Met AA-M12 C12 C22 A32
MIL-8625F Type II Class II
ISO 9001:2008
Product Name Aluminum Extruded Products
