Custom Powder Coating of Large Extruded Aluminum Rooftop Louvers

Custom Powder Coating of Large Extruded Aluminum Rooftop Louvers

Click to Enlarge

Custom Powder Coating of Large Extruded Aluminum Rooftop Louvers

Click to Enlarge

Custom Powder Coating of Large Extruded Aluminum Rooftop Louvers

Click to Enlarge

Powder coating has long been known for its ability to make coated parts impervious to the elements. At Ace Anodizing we understand that the durability of the coating is only as good as the application method. That’s why this fabricator came to us with this large scale powder coating project. The components, which were fabricated from aluminum, were to spend their service life on a building roof protecting equipment.

The customer had specific requirements for the coating, such as the application of a chromate corrosion primer and a fluro-polymer custom color, all of which were necessary to guarantee the coatings performance. They also had specific requirements for packaging to protect the parts through shipping and rigging to the rooftop installation. Our ability to powder coat and oven cure large parts allowed us to powder coat each of the eight 108″ x 96″, heavy gauge aluminum panels in five days.

For more information on this project, or to learn how Ace Anodizing can service your powder coating needs, see the table below or contact us directly.



Request a Quote/Information

Highlights of this Custom Powder Coating Project

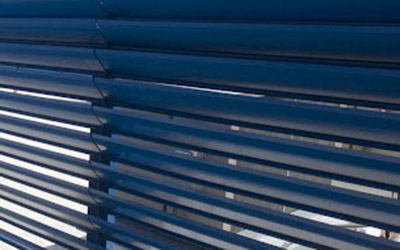

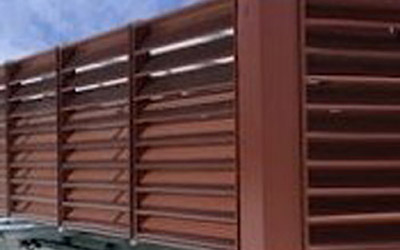

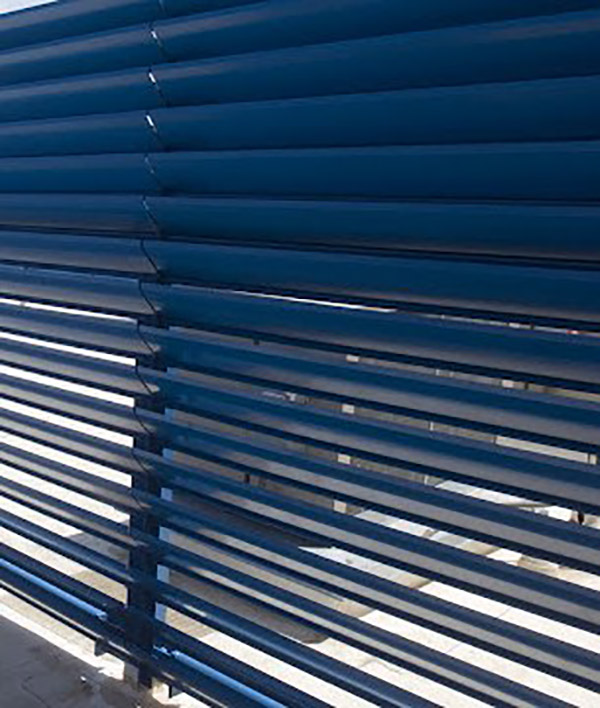

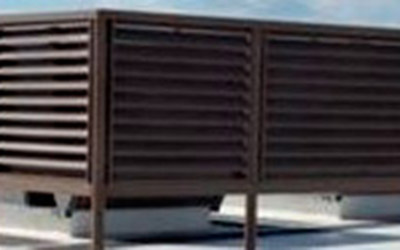

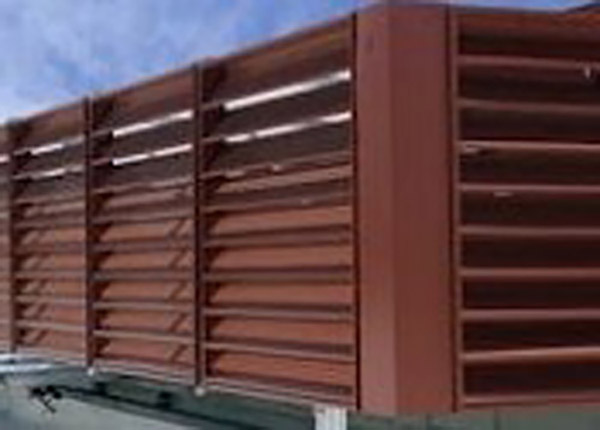

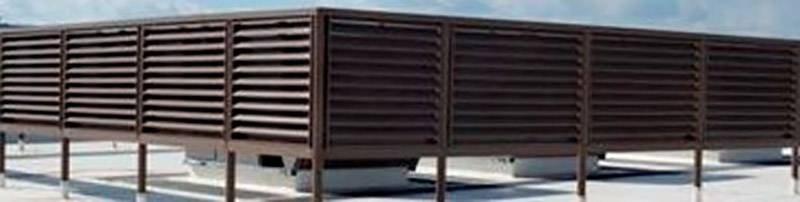

Product Description These large extruded aluminum louvers are used as heavy equipment screens.
Custom Powder Coating Capabilities Applied/Processes Primary:
Powder Coating
Thermal Curing
Secondary:
Prime
  • Apply chromate corrosion Primer
Thermal Curing
Packaging
  • Custom Packaging w/ Protective Barriers on Wooden Skids and Crating
Overall Part Dimensions Length: 108"
Height: 96"
Material Coated Aluminum
Finish Architectural Fluro-Polymer Custom Color
Resistances Must Withstand Continuous Exposures to the Elements Including
  • Wind
  • Rain
  • Sun
  • Freezing Conditions
Features Due to Our Large Part Capabilities Our Client Was Able to Fabricate Unit Complete Prior to Coating
  • Improved Clients Efficiency
  • Improves Clients Lead Time
Industry for Use Architectural
Industrial
In process testing/inspection performed Visual Inspection
Adhesion Testing
Volume Custom Fabricated Per Project Specification
Delivery Lot Sizes of 8 Pieces
Delivery/Turnaround Time 5 Days
Delivery Location Illinois
Standards Met ISO 9001:2008 Certified
AAMA 2603, 2604, 2605
Customer Supplied Print and Coating Specifications
Product Name Architectural Louvers
Rooftop Equipment Screens
Industrial Ventilation
